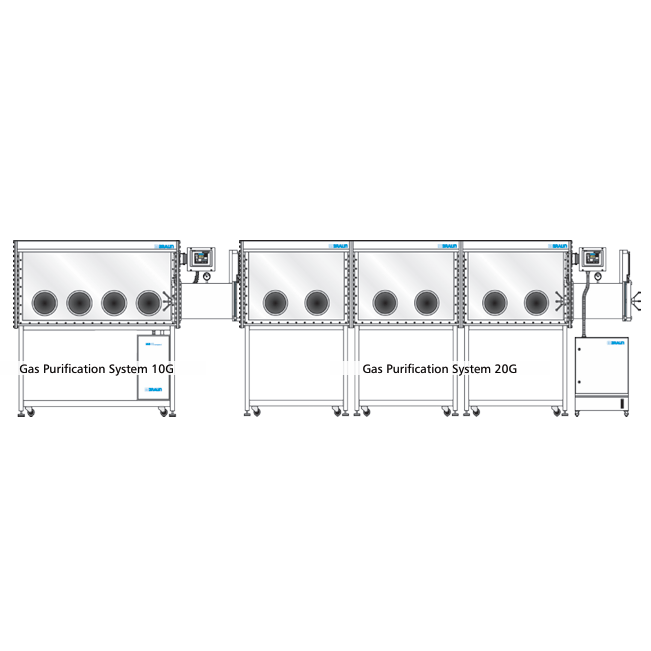

Modular Glovebox Sizes
Lengths: 1250mm, 1500mm, 1800mm, 2000mm
Depths: 780mm, 1000mm, 1200mm
Height: 900mm
Glovebox Specification
• Stainless steel 1.4301 (US Type 304) construction
•(4/5) DN 40 KF feedthroughs included (1) electrical
• Fine filter (1) gas inlet, (1) gas outlet, class H13
• Scratch resistant polycarbonate windows
• 0.4mm Glovebox gloves (optional glove sizes and materials are available)
• POM 220mm diameter glove ports
• Fluorescent front mounted lamp
• Mini 1000mm length x 220mm depth stainless steel shelving
• Leak rate <0.05 vol%h (acc. ISO 10648-2)
• Weight 432/614 kg
Large Antechamber Specification
• Cylindrical design with stainless steel sliding tray (optional antechamber sizes and configurations are available)
• Antechamber size 390mm diameter x 600mm length
• Stainless steel 1.4301 (US Type 304) construction
• Aluminum door
• Leak rate <10-5 mbar l/s
LABmaster Gas Purification Specification
• Optional H2O/O2 single (sp) / double (dp) column inert gas purifier
• Attainable purity level H2O < 1 ppm, O2 < 1 ppm
• Rotary vane pump
• Auto regeneration
• Removal capacity 36 l O2 & 1300 g H2O
• Multiple speed blower w/ frequency controller
• Stainless steel 1.4301 (US Type 304) piping
• Flow rate up to 88 m³/h
Controller Specification
• Siemens PLC with large color touch panel
• Automatic box pressure control with foot switch (+15 mbar,-15 mbar)
• Multi-language operation
• Box trending capabilities
