Product  >  設備系統  >  FOM


  • 產品說明
Product specificaton
66 x 63 x 49 cm
<200mm width
Up to 5 m/min
Up to 200 °C
50 kg
Options available

Product description

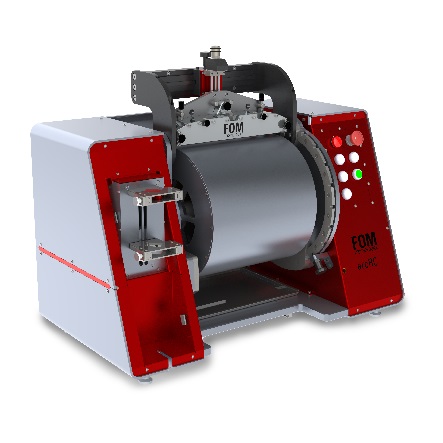

The FOM arcRC has been designed from the ground up to mimic industrial roll-based coating in a smaller, lab-friendly form factor. By integrating industry-grade components and a user-friendly interface, the FOM arcRC provides a seamless, accelerated user workflow and excellent control for coating a wide variety of active materials. It is an ideal solution for users aiming to bridge the gap between fundamental research and pilot-scale production, with an emphasis on developing roll-supported coating processes.

Key features
• Lab-scale simulation of R2R coating
• Adjustable slot-die angles for flow and shear control
• Automated coating via intuitive laptop interface
• Turnkey glovebox compatibility
• Compatible with fluids up to 20,000 cP
• Simple film thickness control
• Uniform film thicknesses from nanometers to microns
• High material efficiency compared to blade & spin coating
• Simple scaling from lab to R2R on FOM moduloR2C
